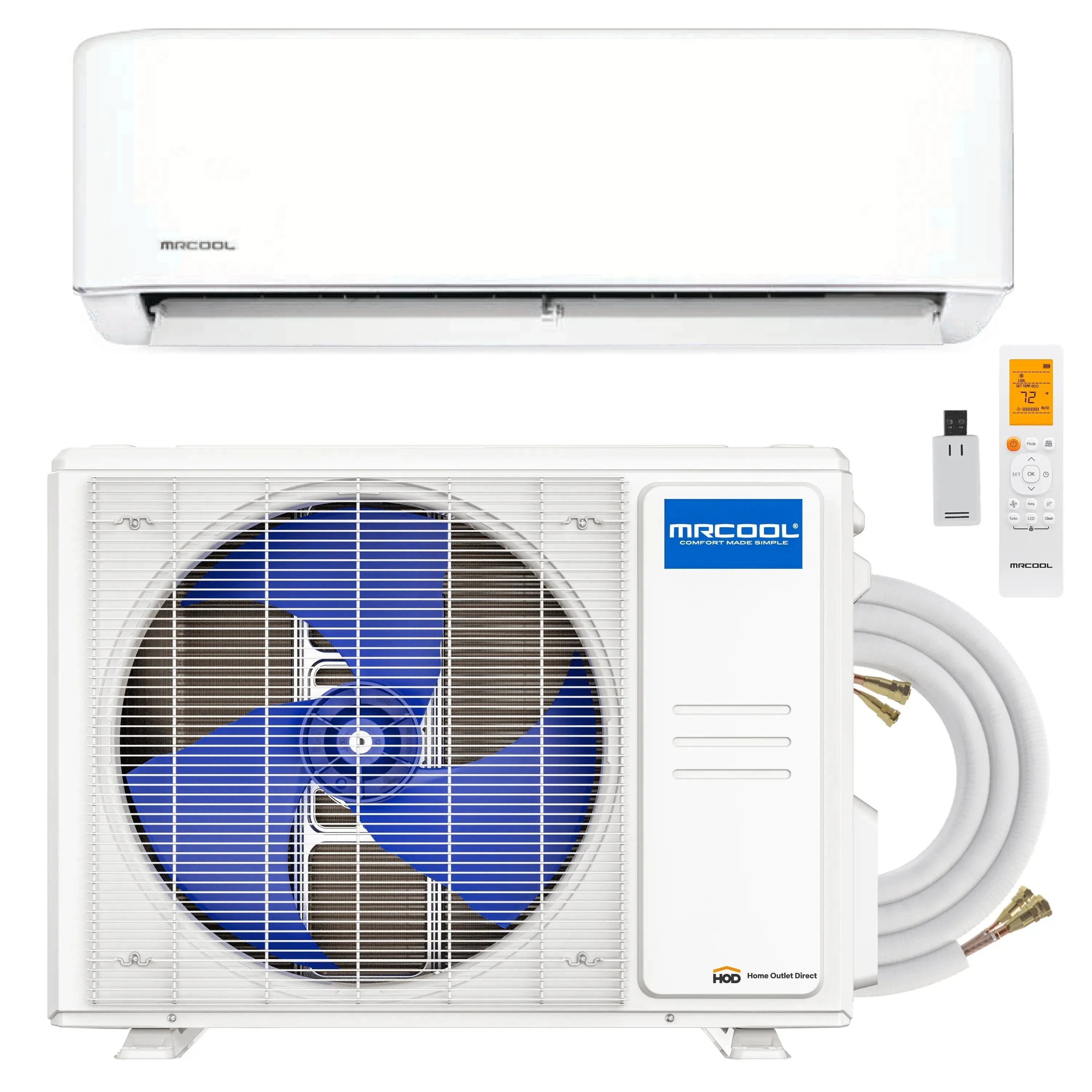

MRCOOL Advantage 5th Gen 12,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-12-HP-230D-O)
The 5th Generation MRCOOL® 12k BTU 230V Advantage Mini-Split Bundle combines a powerful condenser and sleek air handler to deliver highly efficient and reliable heating and cooling. This ductless system utilizes R454B refrigerant, an eco-friendly choice that significantly enhances energy efficiency, reduces greenhouse gas emissions, and features a Global Warming Potential (GWP) nearly 80% lower than traditional refrigerants.
Designed for quiet, consistent operation, this Advantage system efficiently maintains comfortable temperatures in spaces up to 500 sq. ft. Achieving an impressive 21.3 SEER2 efficiency rating and an HSPF2-4 rating of 9.1, it offers substantial energy savings without compromising on comfort.
Enjoy ultimate convenience with built-in Wi-Fi control, allowing you to easily adjust temperature settings remotely via your smartphone or through voice commands using Amazon Alexa or Google Assistant. The system can also automatically adjust overnight, optimizing comfort and reducing energy consumption effortlessly.
Although professional HVAC installation is required, the ductless mini-split design ensures a quicker, simpler, and more cost-effective installation process compared to traditional systems.
Backed by MRCOOL’s robust warranty coverage, you can confidently rely on 2 years for parts, 1 year for the compressor, and 1 year for the remote control with product registration. For further peace of mind, register in the MRCOOL® Care Program to benefit from an extended Limited Lifetime warranty.
Experience premium, practical, and eco-conscious comfort at an unbeatable value with the MRCOOL® 12k BTU 230V Advantage Mini-Split Bundle.
Features
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
- Affordable
- Highly Efficient
- Low Ambient Cooling
- 16 Ft. Install Kit Included
-
Must be installed by HVAC tehnician
Model |
Indoor Unit: A-12-HP-WMAH-230D-O Outdoor Unit: A-12-HP-C-230D-O |
Net Dimension (WxDxH) Indoor Outdoor |
31.57 x 7.44 x 11.69 inch 30.12 x 11.93 x 21.85 inch |
Cooling Capacity | 12000 BTU/h |
SEER2 |
21.3 BTU/w |
EER2 | 10.8 BTU/w |
Heating Capacity |
12000 BTU/h |
HSPF2-4 |
9.1 BTU/h |
HSPF2-5 |
7.0 BTU/h |
Max Coverage Area* |
Up to 550 |
Indoor noise level (Turbo/Hi/Mi/Lo/Si) |
44.0/38.0/32.0/22.5/21 |
Outdoor noise level (Hi) |
54 dB (A) |
Power Supply |
208-230V-60Hz. 1Ph |
Minimum Circuit (Disconnect) |
Indoor - 3.0 A Outdoor - 13.0 A |
Maximum Fuse (Breaker) |
Indoor - 15.0 A Outdoor - 15.0 A |
Net/Gross Weight Indoor Outdoor |
19.40/25.13 Lbs 59.08/64.37 Lbs |
†Refrigerant R-454B Piping Size Liquid side/Gas side |
24.69 |
