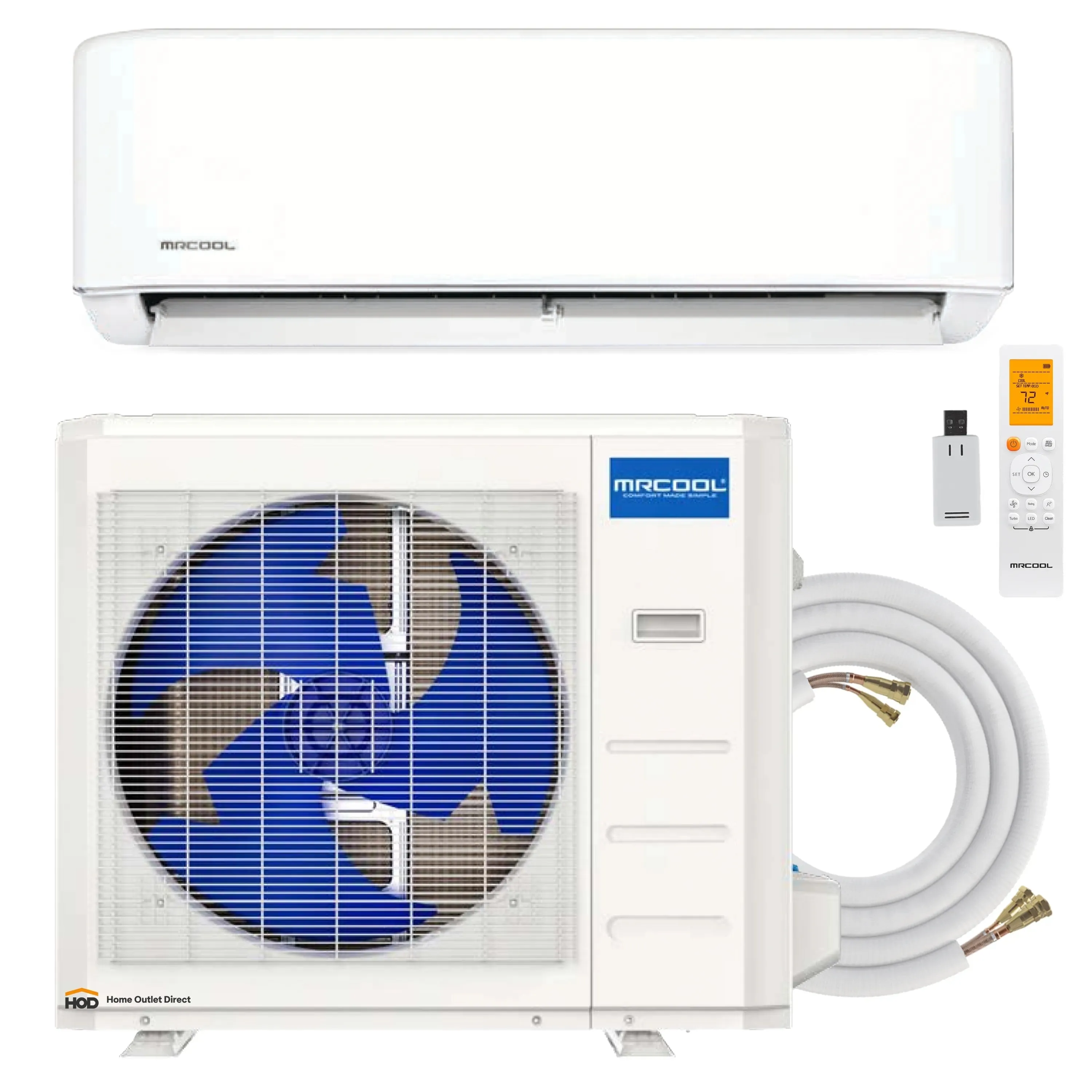

MRCOOL Advantage 5th Gen 9,000 BTU Single Zone Mini Split Complete System with 16 Ft. Line Set, 230V, Wall Mounted (A-09-HP-230D-O)
The 5th Generation MRCOOL® 9k BTU 230V Advantage Mini-Split Bundle offers a complete, energy-efficient solution for reliable climate control, featuring a quiet-operating air handler, powerful condenser, and ductless design ideal for spaces up to 400 sq. ft. Utilizing advanced R454B refrigerant, this eco-friendly system significantly enhances energy efficiency while reducing greenhouse gas emissions, boasting a Global Warming Potential (GWP) nearly 80% lower than traditional refrigerants.
Engineered to achieve outstanding performance with up to a 21.2 SEER2 efficiency rating and an HSPF2-4 of 9.1, this Advantage Mini-Split system ensures consistent heating and cooling while lowering energy costs and reducing your carbon footprint. With its sleek design and affordability, it is the perfect choice for homeowners seeking powerful yet economical comfort solutions.
Built-in Wi-Fi capability enhances convenience, enabling remote operation via smartphone or through voice commands with Amazon Alexa and Google Assistant. Enjoy automatic temperature adjustments, optimizing comfort and energy savings effortlessly, particularly overnight.
Professional HVAC installation is required; however, the ductless configuration ensures quicker, easier, and less costly installation compared to traditional central air systems.
For complete peace of mind, MRCOOL® offers a robust warranty covering 2 years on parts, 1 year on the compressor, and 1 year on the remote control upon registration. Further extend your comfort security by subscribing to the MRCOOL® Care Program and gaining access to a Limited Lifetime warranty.
Experience unmatched efficiency, convenience, and environmental responsibility with the MRCOOL® 9k BTU 230V Advantage Mini-Split Bundle.
Features
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
- Affordable
- Highly Efficient
- Low Ambient Cooling
- 16 Ft. Install Kit Included
-
Must be installed by HVAC tehnician
Model |
Indoor Unit: A-09-HP-WMAH-230D-O Outdoor Unit: A-09-HP-C-230D-O |
Net Dimension (WxDxH) Indoor Outdoor |
28.43 x 7.36 x 11.42 inch 30.12 x 11.93 x 21.85 inch |
Cooling Capacity | 9000 BTU/h |
SEER2 |
21.2 BTU/w |
EER2 | 12.6 BTU/w |
Heating Capacity |
10000 BTU/h |
HSPF2-4 |
9.1 BTU/h |
HSPF2-5 |
7.0 BTU/h |
Max Coverage Area* |
Up to 400 |
Indoor noise level (Turbo/Hi/Mi/Lo/Si) |
40.5/35.5/31.5/23.0/18.5 |
Outdoor noise level (Hi) |
53.5 dB (A) |
Power Supply |
208-230V-60Hz. 1Ph |
Minimum Circuit (Disconnect) |
Indoor - 3.0 A Outdoor - 12.0 A |
Maximum Fuse (Breaker) |
Indoor - 15.0 A Outdoor - 15.0 A |
Net/Gross Weight Indoor Outdoor |
16.98/22.27 Lbs 54.23 / 59.74 |
†Refrigerant R-454B Piping Size Liquid side/Gas side |
21.52 |
Brochure |
